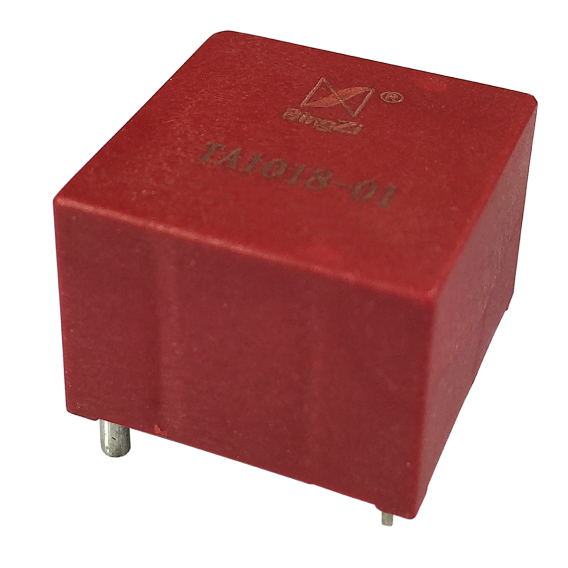

1. Features:

① Vertical core-through, printed circuit board directly soldered and installed;

② Small size, large via hole, high precision, beautiful appearance;

③ Fully enclosed, good mechanical and environmental resistance, strong voltage isolation capability.

2．Ambient Conditions

① Ambient temperature: -55℃～+85℃;

② Relative humidity: ≤90% at 40℃;

③ Atmospheric pressure: 860～1060mbar(about 650～800mmHg) .

3．Operating Frequency Range: 20Hz~1kHz

4．Insulation Thermal Class：Class B (130°C)

5．Safety Features:

① Insulation resistance: >1000MΩ in normal condition;

② Insulation withstand voltages: 6kV 50Hz/1 min;

③ Fire retardancy: In conformity with UL94-V0.

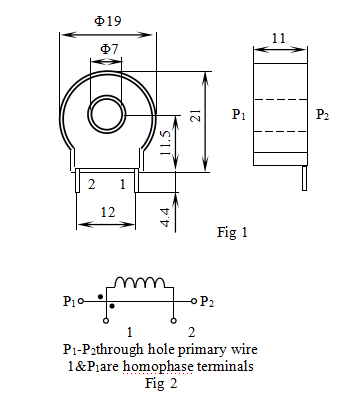

6. Outline Drawing, Installation Dimension and Coil Diagram : ( tolerance ± 0.5mm )

 7. Typical Application and Performance Parameters:

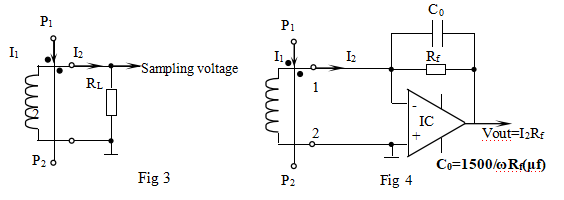

① When the sampling voltage is directly obtained by the resistance method (as shown in Figure 3); the performance parameters are shown in Table 1;

② When using the IC method to obtain the sampling voltage (as shown in Figure 4), the performance parameters are shown in Table 2;

Table 1:

Table 2:

8．Attention:

① Connect the primary winding of the current transformer in series with the measured current loop, and operate the secondary winding in near short-circuit mode.

② Do not allow the secondary winding of the current transformer to be open-circuited and do not install any fuse in the secondary circuit.
